AI Skill Hub 推荐使用：SFlow 是一款优质的Agent工作流。AI 综合评分 7.5 分，在同类工具中表现稳健。如果你正在寻找可靠的Agent工作流解决方案，这是一个值得深入了解的选择。
AI Native SecOps平台，基于LangGraph多智能体协调。自动化安全运维平台。
SFlow 是一套完整的 AI Agent 自动化工作流方案。通过可视化的节点编排，将复杂的多步骤任务拆解为清晰的自动化流程，实现全程无人值守的智能处理。支持与数百种外部服务和 API 无缝集成，适合构建数据处理管线、业务自动化和 AI 辅助决策系统。
AI Native SecOps平台，基于LangGraph多智能体协调。自动化安全运维平台。
SFlow 是一套完整的 AI Agent 自动化工作流方案。通过可视化的节点编排，将复杂的多步骤任务拆解为清晰的自动化流程，实现全程无人值守的智能处理。支持与数百种外部服务和 API 无缝集成，适合构建数据处理管线、业务自动化和 AI 辅助决策系统。
# 方式一：pip 安装（推荐）
pip install sflow
# 方式二：虚拟环境安装（推荐生产环境）
python -m venv .venv
source .venv/bin/activate # Windows: .venv\Scripts\activate
pip install sflow
# 方式三：从源码安装（获取最新功能）
git clone https://github.com/Ch1nfo/SFlow
cd SFlow
pip install -e .
# 验证安装
python -c "import sflow; print('安装成功')"
# 命令行使用
sflow --help
# 基本用法
sflow input_file -o output_file
# Python 代码中调用
import sflow
# 示例
result = sflow.process("input")
print(result)
# sflow 配置文件示例（config.yml） app: name: "sflow" debug: false log_level: "INFO" # 运行时指定配置文件 sflow --config config.yml # 或通过环境变量配置 export SFLOW_API_KEY="your-key" export SFLOW_OUTPUT_DIR="./output"
<details> <summary><strong>System Architecture Diagram</strong></summary>
┌─────────────────────────────────────────────────────────────────┐
│ React WebUI (Vite + TS) │
│ ┌──────────────┐ ┌─────────────────┐ ┌───────────────────┐ │
│ │ Overview / │ │ Conversation UI │ │ Plugin & Config │ │
│ │ Alerts / │ │ + approvals │ │ Management │ │
│ │ Tasks │ │ │ │ │ │
│ └──────────────┘ └─────────────────┘ └───────────────────┘ │
└──────────────────────────┬──────────────────────────────────────┘
│ REST API (FastAPI)
┌──────────────────────────▼──────────────────────────────────────┐
│ SentinelFlow Runtime (Python / FastAPI) │
│ ┌────────────────────────────────────────────────────────────┐ │
│ │ Multi-Agent Orchestrator │ │
│ │ ┌──────────────────────────────────────────────────┐ │ │
│ │ │ Primary Agent (Supervisor) │ │ │
│ │ │ LangGraph StateGraph + ToolNode │ │ │
│ │ │ Context Window → ReAct → Worker/Skill Tools │ │ │
│ │ │ ↓ sequential / parallel worker delegation │ │ │
│ │ │ ┌────────────┐ ┌────────────┐ ┌────────────┐ │ │ │
│ │ │ │ Worker A │ │ Worker B │ │ Worker C │ │ │ │
│ │ │ │ ReAct Sub- │ │ ReAct Sub- │ │ ReAct Sub- │ │ │ │
│ │ │ │ Graph │ │ Graph │ │ Graph │ │ │ │
│ │ │ └────────────┘ └────────────┘ └────────────┘ │ │ │
│ │ └──────────────────────────────────────────────────┘ │ │
│ └────────────────────────────────────────────────────────────┘ │
│ ┌────────────────────────────────────────────────────────────┐ │
│ │ Skill Runtime │ │
│ │ loader → executor → subprocess isolation → audit log │ │
│ └────────────────────────────────────────────────────────────┘ │
│ ┌────────────────────────────────────────────────────────────┐ │
│ │ Prompt Window & Run Log Traceability │ │
│ │ task anchors → case_context → compact tool records │ │
│ │ full state/checkpoints/run logs remain available │ │
│ └────────────────────────────────────────────────────────────┘ │
│ ┌────────────────────────────────────────────────────────────┐ │
│ │ Alert Ingestion & Task Queue │ │
│ │ Multi-Source API/Script Poller → Parser → Dedup → Queue │ │
│ │ Source-Scoped Auto-Executor → Task Runner → Agent/Workflow│ │
│ └────────────────────────────────────────────────────────────┘ │
└─────────────────────────────────────────────────────────────────┘Core Design Patterns
@tool functions; compact summaries, key facts, action results, approvals, and errors surface back to the Supervisorprepare_messages_for_llm() creates the actual LLM prompt view from full state, preserving task anchors and recent ReAct turns while compressing older tool recordscase_context carries current goal, alert refs, facts, actions taken, missing inputs, pending approvals, completed steps, and do-not-repeat hints for the current run onlyalert (JSON from SIEM) and conversation (human command); both routed through the same agent runtime_serialize_alert_result for a consistent, structured execution traceKey Components
SentinelFlowAgentService — Top-level service; routes to orchestrator or single-agent graph; serializes resultsbuild_orchestrator_graph() — Compiles the Supervisor + Worker multi-agent LangGraphbuild_agent_graph() — Builds a single-agent ReAct SubGraph (used for both workers and standalone agents)context_utils — Builds context manifests, task anchors, case context, prompt windows, key facts, compact tool summaries, and pre-execution input checksRunLogTracer / AgentRunLogService — Records per-run LLM prompt views, window information, worker boundaries, skill calls, approvals, and final resultsAlertDispatchService — SQLite-backed source-aware task queue; handles create, dedup, status transition, and finalizationAlertPollingService — Per-source scheduler that polls enabled API/script alert sources and dispatches normalized alerts into the task queueAlertAutoExecutionService — Asyncio-based source-scoped executor loop; processes queued and retry-eligible tasks without human actionAlertParserGenerator — LLM-assisted + heuristic field-mapping rule generator for arbitrary JSON alert payloadsSentinelFlowSkillRuntime — Manages skill lifecycle; adapts skills as LangChain tools for agent useAgentWorkflowRegistry — Lists and resolves workflow definitions for multi-step Agent WorkflowsSkillApprovalService — Persists approval records and checkpoint resume state for human-in-the-loop executionweekly_alert_cleanup_service — Optional weekly cleanup for stored alert tasks and run artifactsAuditService — Records runtime audit events for dispatch, task execution, approval handling, and background services</details>
<details> <summary><strong>Project Structure</strong></summary>
.
├── pyproject.toml # Python package metadata & CLI entrypoint
├── scripts/
│ ├── dev.py # Unified local dev entrypoint
│ └── serve_webui.py # Production WebUI static file server
├── .sentinelflow/ # Local plugins, runtime.json, SQLite queue (generated at runtime)
├── runtime/
│ └── sentinelflow/
│ ├── agent/
│ │ ├── service.py # Top-level agent service (orchestration logic)
│ │ ├── orchestrator_graph.py # Supervisor + Worker SubGraph builder
│ │ ├── graph.py # Single-agent ReAct graph builder
│ │ ├── registry.py # Agent definition loader (agent.yaml)
│ │ ├── prompts.py # System prompts & appendix templates
│ │ ├── context_utils.py # Context manifest, prompt window, case_context, compact records
│ │ ├── run_log_tracer.py # LLM prompt/run-log event tracing
│ │ ├── skill_run_analyzer.py # Skill/closure/action result convergence
│ │ ├── policy.py # Per-agent skill permission resolver
│ │ ├── nodes.py # LangGraph node implementations
│ │ ├── tools.py # Agent-facing tool definitions
│ │ └── state.py # Agent graph state schema
│ ├── skills/
│ │ ├── loader.py # SKILL.md discovery & validation
│ │ ├── executor.py # Skill subprocess execution
│ │ ├── adapters.py # Skill → LangChain tool adapters
│ │ ├── resolver.py # Local/plugin skill resolution
│ │ └── models.py # Skill data models
│ ├── alerts/
│ │ ├── client.py # Alert source HTTP/script client
│ │ ├── poller.py # Scheduled polling service
│ │ ├── parser_runtime.py # Field-mapping parser engine
│ │ ├── parser_generator.py # LLM + heuristic parser rule generator
│ │ └── dedup.py # Alert deduplication store
│ ├── services/
│ │ ├── agent_run_log_service.py # Per-alert JSONL run logs
│ │ ├── dispatch_service.py # SQLite-backed task queue & lifecycle
│ │ ├── task_runner_service.py # Task execution orchestration
│ │ ├── auto_execution_service.py # Continuous auto-executor loop
│ │ ├── skill_approval_service.py # Skill approval records + checkpoint persistence
│ │ ├── triage_service.py # Rule-based alert disposition fallback
│ │ ├── weekly_alert_cleanup_service.py # Optional weekly cleanup
│ │ └── audit_service.py # Audit event log
│ ├── tools/ # Built-in operational tools
│ ├── workflows/ # Agent workflow registry & runner
│ ├── api/ # FastAPI route handlers
│ ├── config/ # Runtime config loader (.env + persisted JSON)
│ └── domain/ # Shared enums, models, errors
│ └── tests/ # Runtime regression tests
├── webui/
│ └── src/
│ ├── components/ # React UI components
│ ├── pages/ # Page-level views
│ ├── api/ # API client (fetch wrappers)
│ ├── hooks/ # Custom React hooks
│ └── styles/ # Global styles & Tailwind config</details>
<details> <summary><strong>Development Guide</strong></summary>
cd webui && pnpm install && cd ..
```bash
cd webui
pnpm install
cd ..python scripts/dev.py webui-build

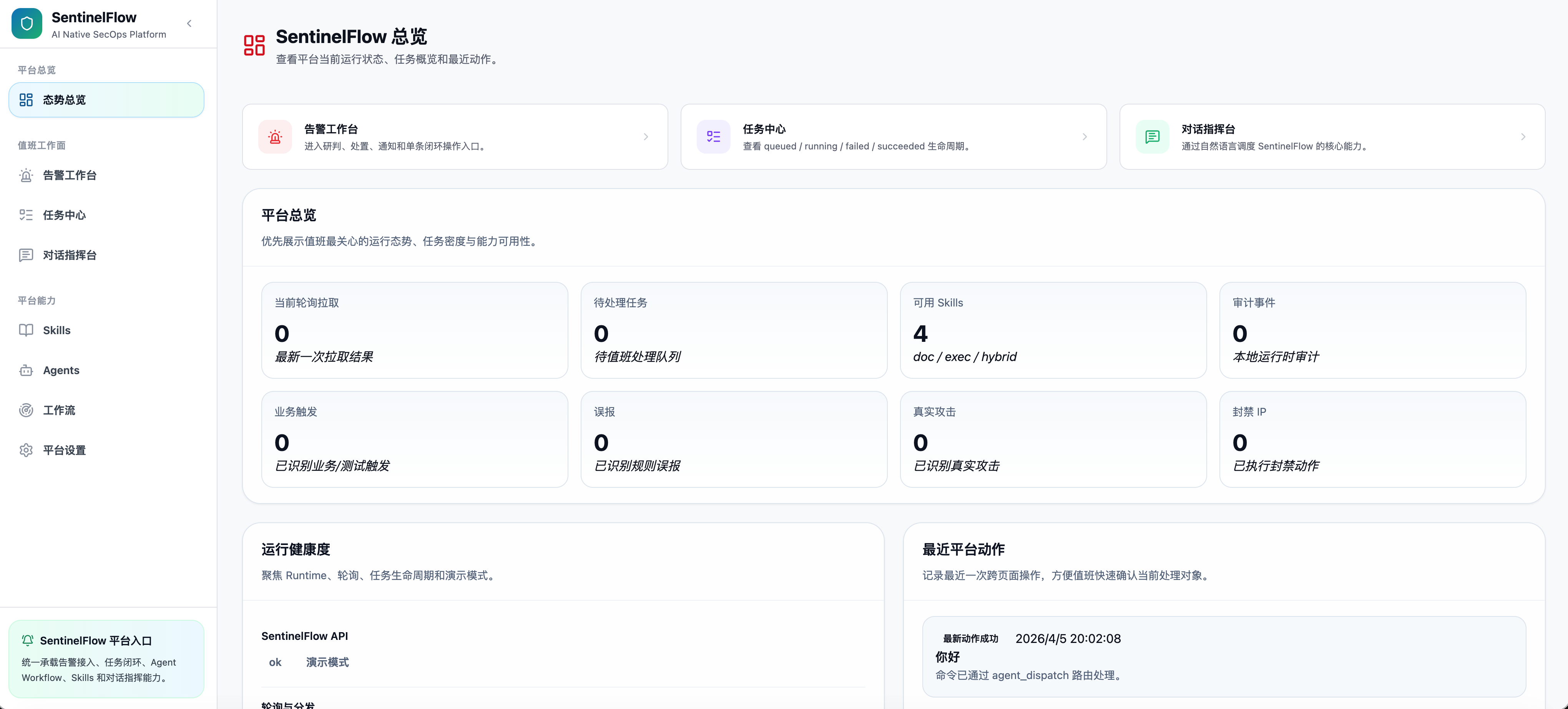

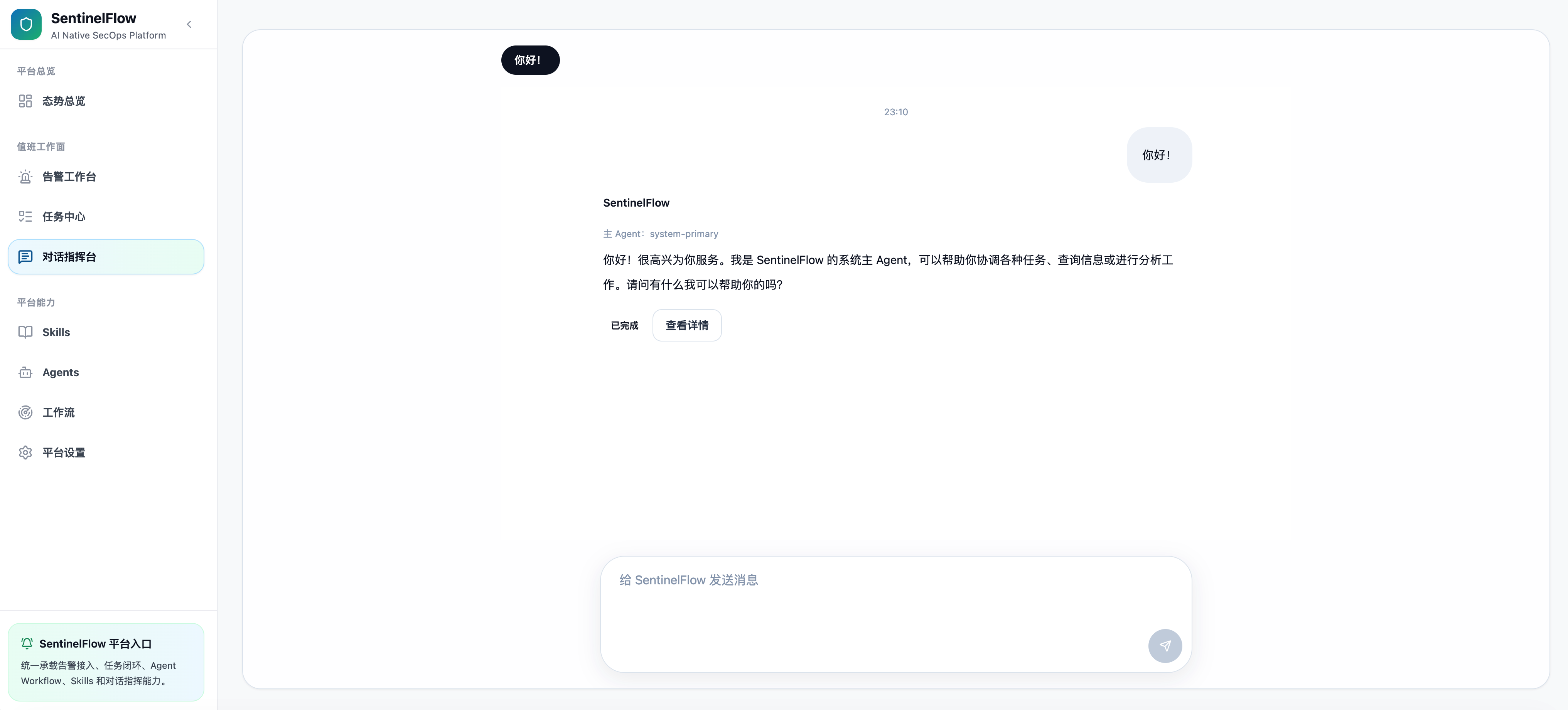

| Security Overview Dashboard | Conversation Console |
|---|---|
|  |  |

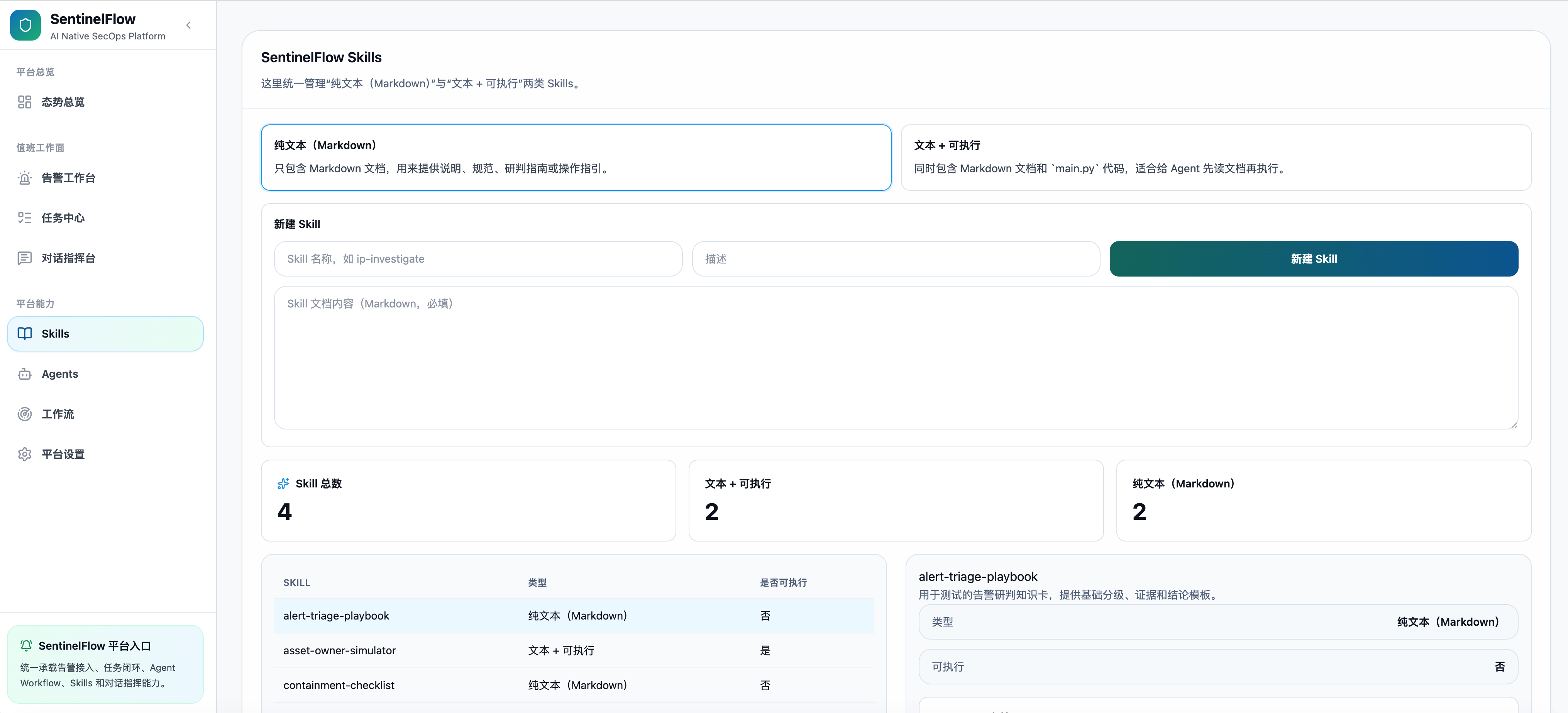

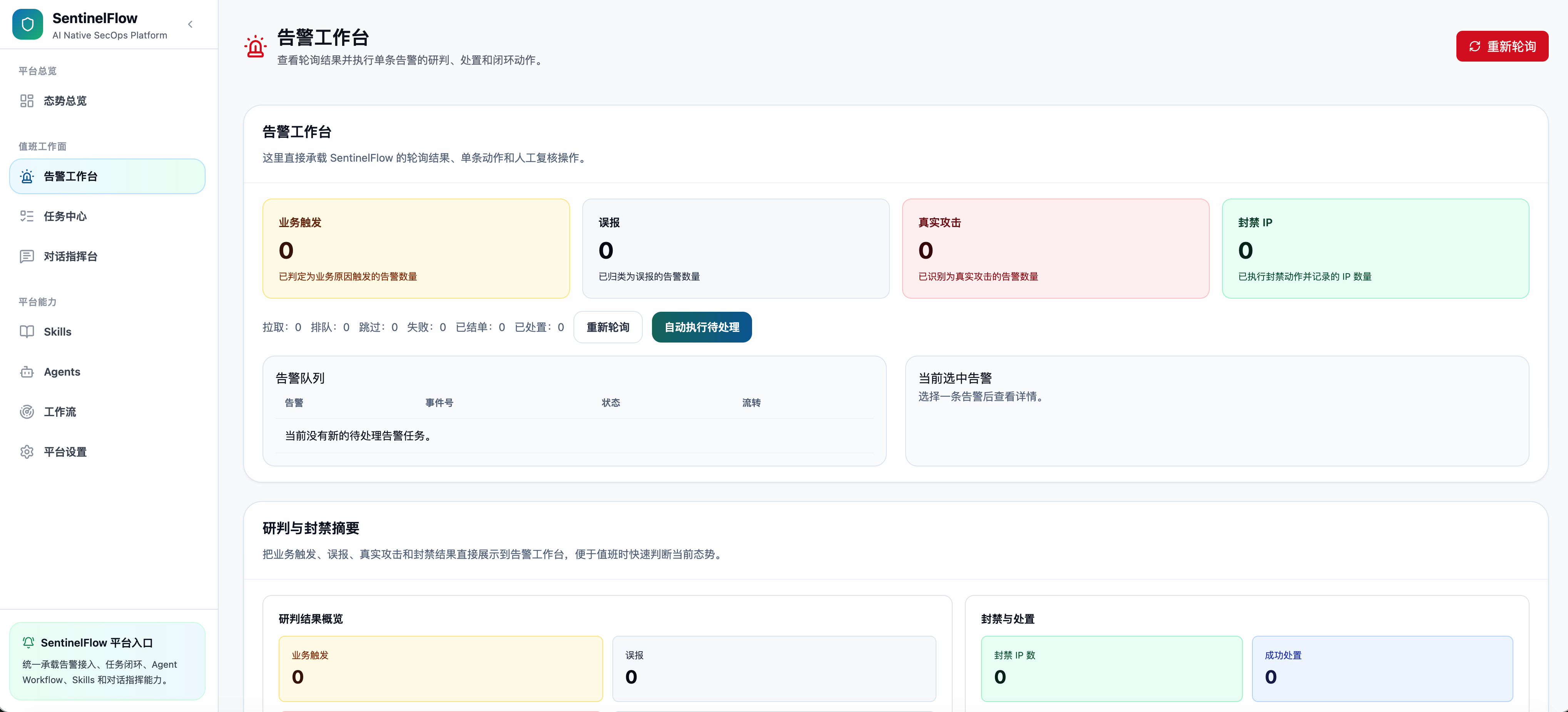

| Alert Workbench | Skill Management |
|---|---|
|  |  |

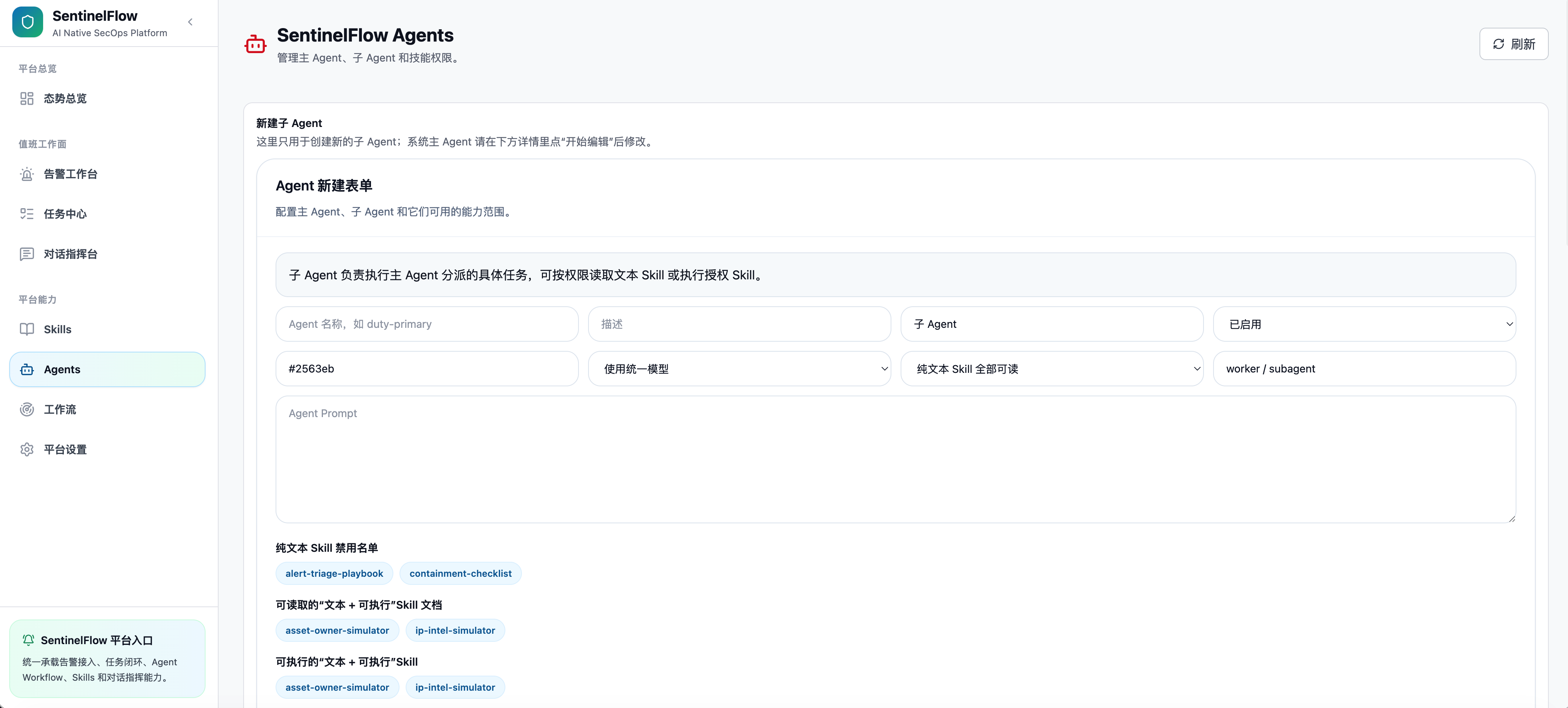

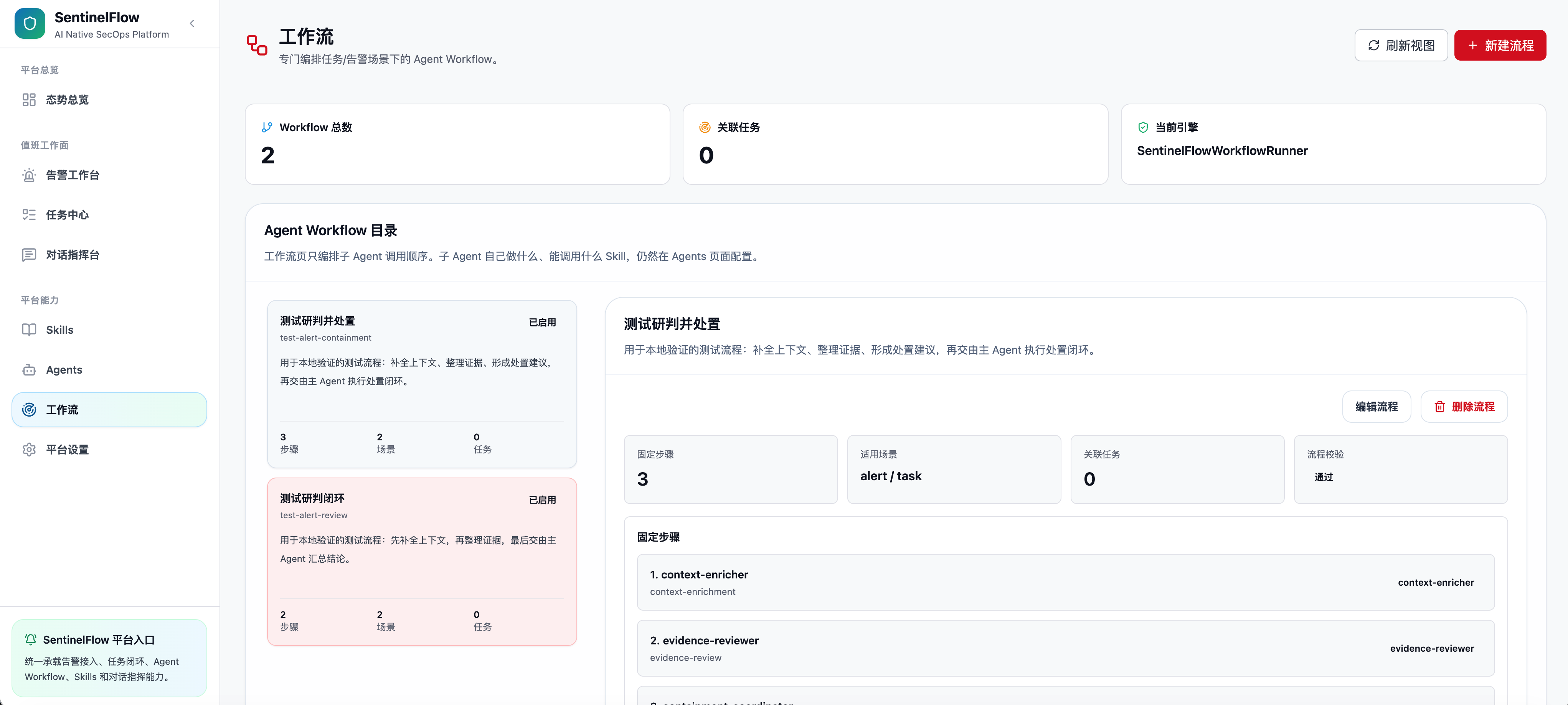

| Agent Management | Workflow Management |
|---|---|
|  |  |
python -m venv .venv source .venv/bin/activate pip install -e ".[dev]"
The preferred way to configure SentinelFlow is through the WebUI Settings panel — all settings are persisted to .sentinelflow/runtime.json by default without requiring a server restart.
Alternatively, create a project-root .env file for environment-level defaults:
touch .envKey environment variables (all prefixed with SENTINELFLOW_):
```ini
SENTINELFLOW_LLM_API_KEY=sk-... SENTINELFLOW_LLM_API_BASE_URL=https://api.openai.com/v1 SENTINELFLOW_LLM_MODEL=gpt-4o SENTINELFLOW_LLM_THINKING_ADAPTER_ENABLED=false # enable only for thinking-model adapters such as DeepSeek
Open the WebUI and navigate to Settings. Configure your LLM endpoint and one or more alert sources — all settings are persisted immediately without a restart.
Alternatively, create a .env file for environment-level defaults:
```bash touch .env
```
Create a new directory under .sentinelflow/plugins/skills/ (default local workspace) with a SKILL.md, or use the Skill Management page in the WebUI to create one directly:
api mode polls any REST endpoint (configurable method, headers, query, body); script mode runs a custom Python script and reads its stdout as the alert payloadfield_mapping parser rule with live preview and one-click applyeventIds, alert_name, sip, dip, alert_time, etc.)<details> <summary><strong>What LLM providers does SentinelFlow support?</strong></summary>
SentinelFlow uses an OpenAI-compatible API interface (langchain-openai). Any provider that supports the OpenAI Chat Completions API format works — including OpenAI, Anthropic (via proxy), DeepSeek, Qwen, local models via Ollama/LM Studio, and API relay services.
Configure the endpoint in the WebUI Settings or via environment variables:
SENTINELFLOW_LLM_API_BASE_URL=https://your-provider/v1
SENTINELFLOW_LLM_API_KEY=your-key
SENTINELFLOW_LLM_MODEL=model-nameFor DeepSeek-style thinking models, enable Thinking Model Adapter in Settings or set SENTINELFLOW_LLM_THINKING_ADAPTER_ENABLED=true. When enabled, SentinelFlow sends thinking: {"type": "disabled"} to avoid provider-side reasoning_content replay errors. Leave it disabled for providers that do not support this request body.
</details>
<details> <summary><strong>What alert source types are supported?</strong></summary>
SentinelFlow supports multiple named alert sources from the Settings panel. Each source can use one of two modes:
api): Polls any REST/HTTP endpoint. Supports GET/POST, custom headers, query parameters, and request body. Ideal for SIEM/SOAR platforms with a REST API.script): Runs a Python script you write directly in the UI. The script should print a JSON object to stdout containing count and alerts. Use this for custom data sources, local log files, or any integration that doesn't expose a REST endpoint.Each source has its own parser rule, polling interval, failed-task retry interval, auto-execution flag, and optional alert-analysis prompt. Tasks are stored with source_id / source_name, and deduplication is scoped by source plus event ID.
</details>
<details> <summary><strong>How does the AI parser generation work?</strong></summary>
Paste a sample alert JSON payload in the Settings panel and click Generate Parser. SentinelFlow sends the sample to your configured LLM, which returns a field_mapping rule that maps your schema's fields to SentinelFlow's canonical alert fields (eventIds, alert_name, sip, dip, etc.). A live preview shows how the rule would parse your sample. If the LLM call fails or is unavailable, a heuristic fallback rule is generated instead.
</details>
<details> <summary><strong>How do I define a Worker Sub-Agent?</strong></summary>
Create a directory under .sentinelflow/plugins/agents/ (default local workspace) with an agent.yaml and optional prompt files, or use the Agent Management page in the WebUI:
```yaml
该项目提供了一个开源的AI工作流平台，基于LangGraph多智能体协调技术，自动化安全运维流程。虽然项目质量较高，但仍需要进一步完善和测试。
AI Skill Hub 为第三方内容聚合平台，本页面信息基于公开数据整理，不对工具功能和质量作任何法律背书。
建议在沙箱或测试环境中充分验证后，再部署至生产环境，并做好必要的安全评估。
✅ MIT 协议 — 最宽松的开源协议之一，可自由商用、修改、分发，仅需保留版权声明。
总体来看，SFlow 是一款质量良好的Agent工作流，在同类工具中具备一定竞争力。AI Skill Hub 将持续追踪其更新动态，建议收藏备用，结合自身场景选择合适时机引入使用。
